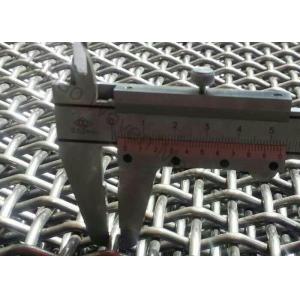

Manganese Steel Rock Screen Mesh, Crusher Self Cleaning Screen Mesh is woven by pre-crimped wire. The most widely
used material for the crimped mesh is High Tensile Steel which guarantee an optimum resistance to abrasion under the
toughest conditions. Also we can manufacture the screen with stainless steel wire, brass wire, etc.
Manganese Steel Rock Screen Mesh, Crusher Self Cleaning Screen Mesh Weaving type: plain crimped, double intermediate
crimped, lock crimped, flat top crimped.
Description of the Manganese Steel Rock Screen Mesh, Crusher Self Cleaning Screen Mesh
| Name | crimped wire mesh,woven mesh for breeding pigs,separation screen,vibrating screen mesh,quarry screen,mine screen mesh. | ||
| Mesh counts | 1-24 mesh | Wire diameter | 40-600 wire |
| Width | 1 m - 5 m. | Technique | Woven |
| Material | stainless steel,carbon steel,high tensile steel and galvanized steel | Features | heat,acid,alkali,wear |
| Rectangle opening wire mesh used | breeding pigs for pig breeding machine used as floor mesh | Square opening crimped wire mesh used | protection mesh fence,quarry,chemical,sifting,pharma |
Manganese Steel Rock Screen Mesh, Crusher Self Cleaning Screen Mesh in rolls :
| Crimped woven mesh screen specification | ||||
| Wire Diameter (mm) | Aperture (mm) | Mesh | Length (M) | Weight (Kg) |
| 4.00 | 40 | 0.58 | 30 | 142 |
| 4.00 | 30 | 0.75 | 30 | 182 |
| 4.00 | 25 | 0.87 | 30 | 213 |
| 3.2 | 25 | 0.87 | 30 | 141 |
| 3.2 | 20 | 1.1 | 30 | 169 |
| 2.6 | 20 | 1.12 | 30 | 116 |
| 2.6 | 18 | 1.23 | 30 | 127 |
| 2.6 | 15 | 1.44 | 30 | 173 |
| 2.0 | 15 | 1.49 | 30 | 92 |
| 2.0 | 12 | 1.8 | 30 | 110 |
| 2.0 | 10 | 2.12 | 30 | 127 |
| 2.0 | 8 | 2.54 | 30 | 155 |
| 1.8 | 7 | 3 | 30 | 149 |
| 1.8 | 6 | 3.25 | 30 | 161 |
| 1.6 | 7 | 3 | 30 | 117 |
| 1.6 | 6 | 3.35 | 30 | 131 |
| 1.6 | 5 | 3.85 | 30 | 150 |
| 1.6 | 4 | 4.5 | 30 | 176 |
| 1.6 | 3 | 5.5 | 30 | 215 |
| 1.4 | 6 | 3.5 | 30 | 105 |
| 1.4 | 5 | 4 | 30 | 120 |
| 1.4 | 4 | 4.7 | 30 | 140 |
| 1.2 | 8 | 2.7 | 30 | 59 |
| 1.2 | 7 | 3.1 | 30 | 68 |
| 1.2 | 6 | 3.5 | 30 | 77 |
Manganese Steel Rock Screen Mesh, Self Cleaning Screen Mesh in plate
| Material | black wire mesh, low carbon wire mesh |
| Mesh count | 1mesh-24mesh |
| Width | 1m-8m(as request) |
| Wire Diameter | 3mm~10mm |
| Hole size | 1.5mm~50mm |
| Hook | 60-180 degree, C hook available. |
| Hook Covered edge | galvanized metal or others |
Application of the quarry Manganese Steel Rock Screen Mesh, Crusher Self Cleaning Screen Mesh
most used in mine ,coal factory, building, etc. It also can be used in filtering and protection of petroleum, chemical industry and
ocean industries with acid and alkali environment, making glass reinforce, various baskets for life and industrial use, art crafts,
baskets used in the kitchen and the refrigerator.
